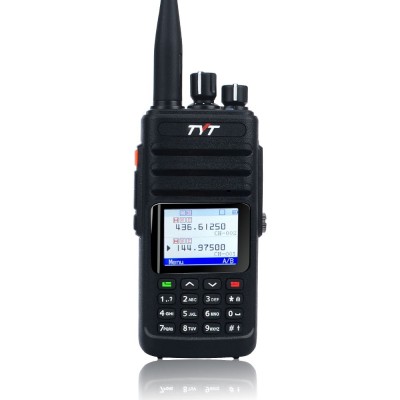

TYT TH-UV8200
Walkie-talkie TYT - portable analog radio, IP67 waterproof, dual band, GPS, 10W, FM, high power, 256 channels, color display, VOX, DTMF
Extra 3% discount when paying with Bitcoin or Ethereum.
(editar con el módulo de Información de seguridad y confianza para el cliente)
(editar con el módulo de Información de seguridad y confianza para el cliente)
(editar con el módulo de Información de seguridad y confianza para el cliente)
Walkie-Talkie TYT 10w IP67 waterproof dual band GPS DTMF portable FM radio two way analog VOX 256CH color radio display.
Features:
IP67 waterproof analog two-way radio.
Dual band, dual display, dual standby and dual standby
256 channel groups memory
Wide/narrow bandwidth selection (25kHz/12.5kHz)
VOX function handsfree
Voice prompt in English/Chinese
CTCSS/DCS encoding and decoding
CTCSS/DCS input Not standard
Automatic scanning
ANI function
FM radio receiver and 25 stored radio stations.
PC program
1750 tones
DTMF decoding and encoding
Stunned, killed and activated remote control
Man down
1.77 inch color screen
Emergency alarm
Roger's beep
Elimination of the tail sound
GPS position
Étape: 0.50/2.50/5.00/6.25/10.0/12.5/25.0/37.5/50.0/100KHz
Specifications
General
Frequency range: 136-174MHz & 400-520MHz
Frequency stability: ± 2.5 ppm
Channel capacity: 256 channels
Operating voltage: DC 7.2V
Antenna: High gain dual band Sma-Male antenna.
Antenna impedance: 50 ohms
Operating mode: Same or different frequency simplex
Dimension (H * W * D): 120*55*33mm
Transmitter
RF power: High≤ 10W - Low ≥ 5W.
Modulation type (wideband/narrowband): 16K Ø F3E/11K Ø F3E.
Max. Fr. deviation (wideband/narrowband): ≤ 5KHz/≤ 2.5KHz.
Ch adjacent. Power (wideband/slantband): ≤-65dB/≤ -60dB.
Power bad: ≤ 7 & micro;W.
Pre-accentuated character: 6db/each frequency doubles the increment.
Modulated noise: <-40db
Current: ≤ 2.8a (10W) ≤ 1.8 a (5W).
DCS/CTCSS frequency deviation: 0.6KHz ± 0.15KHz,0.4KHz ± 0.1KHz.
Indoor sensitivity: 8 ~ 12mV
Modulation distortion: <5%
Receiver
Reference sensitivity: <-122dbm (12db SINAD)
Audio power: 1W
Audio distortion: <5%
Blocking: ≥ 85
Intermodulation (wideband/narrowband): ≥ 60dB ≥ 55dB
Ch Neighbor. Selection: ≥ 65dB ≥ 60dB
Note: Specifications are subject to change without notice due to technical improvements. Thank you.
The package contains:
1 x Dual band GPS radio
1 x Li-ion battery DC7.4V 2200mAh
1x16.5cm standard antenna
Male high gain SMA antenna 1x37.5cm
1 x belt clip
1 x desktop charger
1 x AC adapter 110-250V
1 x user manual in English
