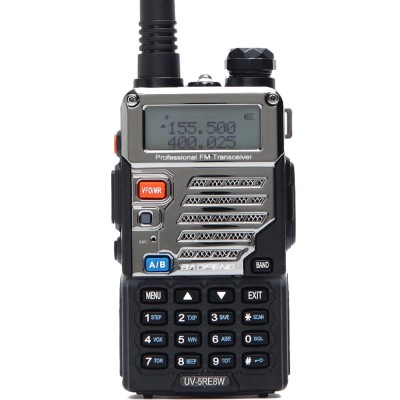

Baofeng UV-5RE
Baofeng UV-5RE 5w walkie talkie, available in 5 different colors. It has a battery capacity of 1800 mah.
Delivery from France or Germany only for the black color.
Extra 3% discount when paying with Bitcoin or Ethereum.
(editar con el módulo de Información de seguridad y confianza para el cliente)
(editar con el módulo de Información de seguridad y confianza para el cliente)
(editar con el módulo de Información de seguridad y confianza para el cliente)
Features and functions:
Dual band handheld transmitter and receiver with menu display function on LCD screen.
DTMF coded
High capacity lithium-ion battery pack.
Commercial FM radio receiver (65 MHz 108).
Includes 105 programmable PLS codes and 50 CTCSS privacy codes.
VOX function (voice transmission).
Alarm function
Up to 128 memory channels.
Wideband (wide)/narrowband (narrow), selectable.
High/low power (5 W/1 W) selectable.
Programmable keypad and backlight.
Beep function on keypad.
Dual Clock/Double Reception
Frequency step selectable 2.5 5 6.25/10 12.5 kHz 25
OFFSET function (frequency shift for repeater access).
Storage of battery saving function
Timed transmission TOT programmable
Selection of scan mode
Lock function for busy channels BCLO
Integrated CTCSS/DCS RX scanner
Integrated LED flashlight
Programmable via PC
Threshold for squelch level adjustable from 0 to 9
Cross-band reception
Final transmission tone
Integrated key
Parameters:
Model : UV-5RE
General :
Frequency range: 65 MHz-108 MHz (commercial FM radio reception only).
VHF: 136 MHz-174 MHz (Rx/Tx).
UHF: 400 MHz-520 MHz (Rx/Tx).
Memory channels: up to 128 channels.
Frequency stability: 2.5ppm
Frequency steps: 2.5 Khz/5 kHz/6.25 kHz/12.5 kHz/25 kHz.
Antenna impedance: 50Ω
Operating temperatures: -20 degrees Celsius to +60 degrees Celsius.
Operating voltage: rechargeable lithium ion 7.4V/1800mA.
Consumption in standby mode: 75ma
Consumption during reception: 380mA.
Consumption during transport: 1. 4A
Mode of operation: single or half duplex.
Duty cycle: 03 03/54 min (Rx/Tx/Standby).
Transmitter :
RF power: 4W/1W.
Type of modulation: FM
Transmitting category: 16 K Φ F3E/11KΦF3E (W/N).
Maximum deviation: 5 kHz/ 2.5 kHz (W/N).
Interference emission: <-60dB
Receiver :
Receiver sensitivity: 0.2uV (at 12dB SINAD).
Between modulations: 60dB
Audio power: 1000 MW
Adjacent channel selectivity: 65/60dB.
Package contents:
1 x UV-5RE dual band FM transceiver
1x headphone
1x antenna
1 x wrist strap
1 x rechargeable battery
1 x charger
1 x belt clip
1 x user manual
