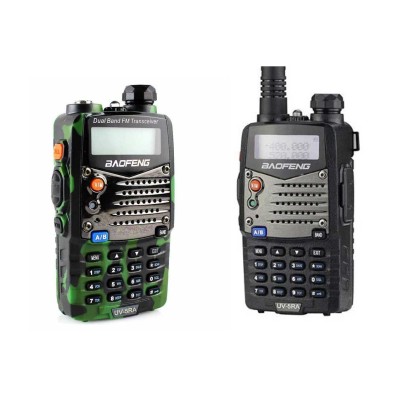

Baofeng UV-5RA
The Baofeng UV-5RA transceiver is an ideal radio for active people who can communicate quickly and easily without having to rely on mobile networks.
It can also be used in recreational sports or as an emergency device if you are alone on a tour or separated from your short-term hiking or climbing partners so that you can achieve mutual location.
Baofeng UV-5RA. Available with labels for the European market. Regulations 2006/95/EC 2004/108/EC and 99/5/EC, FCC, ROHS. This labeling is exclusive for BLACK COLOR walkies, see the labels in the product images.
Distance 6kms.
Select below if you want it with or without CE certificate. Or if you want walkies.
Extra 3% discount when paying with Bitcoin or Ethereum.
(editar con el módulo de Información de seguridad y confianza para el cliente)
(editar con el módulo de Información de seguridad y confianza para el cliente)
(editar con el módulo de Información de seguridad y confianza para el cliente)
The design of the device combines ease of handling and good style in one. In addition, this device has a large controllable frequency range at which it can be sent. So even in difficult situations, the Baofeng UV-5RA radio is a practical companion.
Dual band, dual display, dual standby, built-in clock, with backlighting, step adjustment of frequency length, switching between High/Low power, power saving mode, long wave to short wave selection, automatic backlighting, independent changes in standby mode (Timeout timer), 50 CTCSS and 104 DCS codes.
No transmission delay, ANI coding, PC or manual display, DTMF coding, PTT ID, automatic keypad lock, busy channel lock function, scan priority, alarm (emergency and battery)
FREQUENCIES 130 -174 and 400 - 520 mhz.
IMPORTANT :
- The model without CE marking is delivered with a 13 cm antenna as standard.
- The model with CE marking is delivered with a 17 cm antenna as standard.
- The walkie-talkies are delivered with their corresponding accessories.
Each walkie in the set comes complete with the following accessories:
Baofeng walkie talkie Baofeng uv-5ra
1800mah battery
Clip for belt suspension
Base charge
Wall charger
Strap for fixation
Antenna according to the chosen model.
Gift pinganillo earphone.
Box and instruction manual.
Specifications:
1. GENERAL:
Frequency range: 65MHz-108MHz (Only FM radio reception) / VHF: 136MHz - 174MHz (Rx/Tx). UHF: 400MHz - 480MHz (Rx/Tx)
Number of reserved channels: Up to 128
Frequency Stability: 2.5 ppm
Frequency steps: 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz
Antenna Impedance: 50Ω
Operating temperature: -20℃ à +60℃
Power supply: 7.4v/1800 mAh Lithium-Ion rechargeable battery
Power consumption in standby state ≤ 75mA
Consumption in reception : 380mA
Consumption in transmission ≤ 1.4A
Mode of operation : Simplex or half duplex
Cyclic : 03/03/54min (Rx/Tx/veill)
Dimensions: 110 mm x 58 mm x 32 mm 2.
Transmitter : RF power : 4W/1W
Modulation type: FM
Class of emission: 16K￠F3E/11K￠F3E(W/N)
Maximum frequency deviation ≤ 5 kHz / ≤ 2.5 kHz(W/N)
Residual radiation <-60 dB.
Receiver: Sensitivity: 0.2 μV (12 dB SINAD)
Intermodulation: 60 dB
Audio power: 1000mW
Adjacent channel selectivity: 65/60dB
Audio distortion < 10%.
Scope of delivery:
1 x Walkie Talkie UV-5RA
1 x Headset
1 x Charging station
1 x Lithium battery
1 x EU adapter
1 x 17 cms professional antenna
1 x Belt clip
1 x Strap
1 x English manual
- Transmitter RF power
- 5w / 1w
- Band
- double band VHF ( 136 - 174 Mhz ) UHF ( 400 - 520 Mhz)
- Standard battery
- 1800 mah
- Radio FM
- Yes
- Flashlight
- Yes
- Tags CE, Fcc , Rohs
- Yes
- Color
- Black
