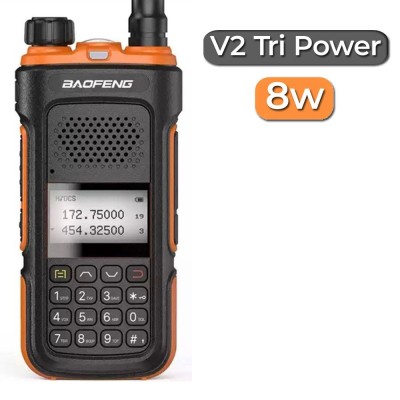

Baofeng UV-10R 8W V2 Tri Power

★【FCC & CE & genuine 】 we are a genuine Baofeng authorized UV-10R, and we have professional FCC and CE certificates. For more authenticity, you can visit the official Baofeng website.

【Certificate number: T.2020.12.0012 】.

【Ice: 62368-1:2014 (second edition) 】

★【Long range communications 】. Professional amateur radio: frequency range: VHF:136-174MHz(RX/TX),UHF:400-520MHz(RX/TX), up to 128 channels. Dual band handheld transmitter and receiver with menu function on the "LCD" screen. This solid radio with power of 8W can reach farther and receive strong signals.

★【Socket Source】Rechargeable Li-ion batteries: equipped with 1 original pack 1500mAh battery + battery charger, supports 24 hours continuous communication.

★【Vox hands-free function 】. Hands-free function, can transmit voice clearly in noisy situation, help you talk anywhere, just take it with you.

★【Lightweight and portable】 equipped with a type C charging port, LED flashlight, charging LED: transmit (red)/receive (green); standard size flexible use in the band.

Product Description:

All our items are new

Model: UV-10R

Dual band/dual display/dual standby: independent operation of A/B band (UV UU VV)

128 groups memory channels: Pop-up menu operation mode

Memory channels scan: Time/transport/search

Emergency alarm: display and flashlight flash together

Delay timer (TOT): 15-600/stepping 15

Mute level (SQL): 0-9 Quality

PTT and ANIID: ON OFF/0-9;A-F

Voice compression extension: 50 CTCSS/104 DCS

TX power high/low selectable: busy channel lock (BCLO)

DTMF ST function: DT + ANI/ANI-ST/DT-ST/OFF

Double PTT: Yes

Wideband/narrowband (25kHz/12.5kHz): Yes

VOX function: Yes OFF/1-10

1750HZ: Yes

Busy lock function: Yes

Scan function: Yes

Monitor function: Yes

Delay timer function (TOT): Yes

LCD SCREEN: Yes

Dual Display: Yes

Dual Standby: Yes

Battery voltage display function: Yes

Channel name display and editing functions: Yes

Signal strength display: Yes

Keypad lock function: Yes

Integrated led flashlight: Yes

FM radio: Yes - 65-108MHZ (reception)

Emergency alarm function Yes

Low battery alarm: Yes

Power saving function: Yes

TX power high/low selectable: Yes 8W

ROGER ENSEMBLE Yes FULL/MG

Chinese and English language prompt: Yes

Thread clone function: Yes

Programmable PC Software: Yes

General Specifications

Frequency stability: ± 2.5ppm

Frequenzschrittweite: 2.5/5/6.25/10/12.5/20/25KHz

Antenna impedance: 50ohm

Operating temperature: -20 ~ + 50 °C

Rated voltage: 7.4V DC ± 10%

Output power: <= 8W

Type of battery: Li-ion battery

Battery capacity: 8000mAh

Headphone connector type: 2-pin Kenwood connector

Antenna type: SMA (male)

Operating mode: simplex or half duplex

Weight: 130g (approximately)

Size (LXPXH): (No antenna)

Transmitter

Modulation type: 16køF3E / 11køF3E

Max frequency deviation: < 5kHz (wide)/< 2.5kHz (narrow)

Emission current: <= 1.5 a (5W)

CTCSS / DCS: 0.7 ± 0.1kHz (wide)/0.4 ± 0.1kHz (narrow)

Reception

Sensitivity: -122dbm (12db SINAD)

Audio power amplifier: 1W

Switching distortion: <10%

Between modulation: > = 65db/>= 60db

False response: 65db

Adjacent channel selectivity (wide/narrow): <-65dB (wide) <-60dB (narrow)

Receive current: <= 380mA

Package includes:

1 X portable radio

1 X antenna

1 X Li-Ion battery

1 X Li-Ion charger

1 X Belt clip

1 X Slingshot

1 X Headphones

1 X Instruction manual
